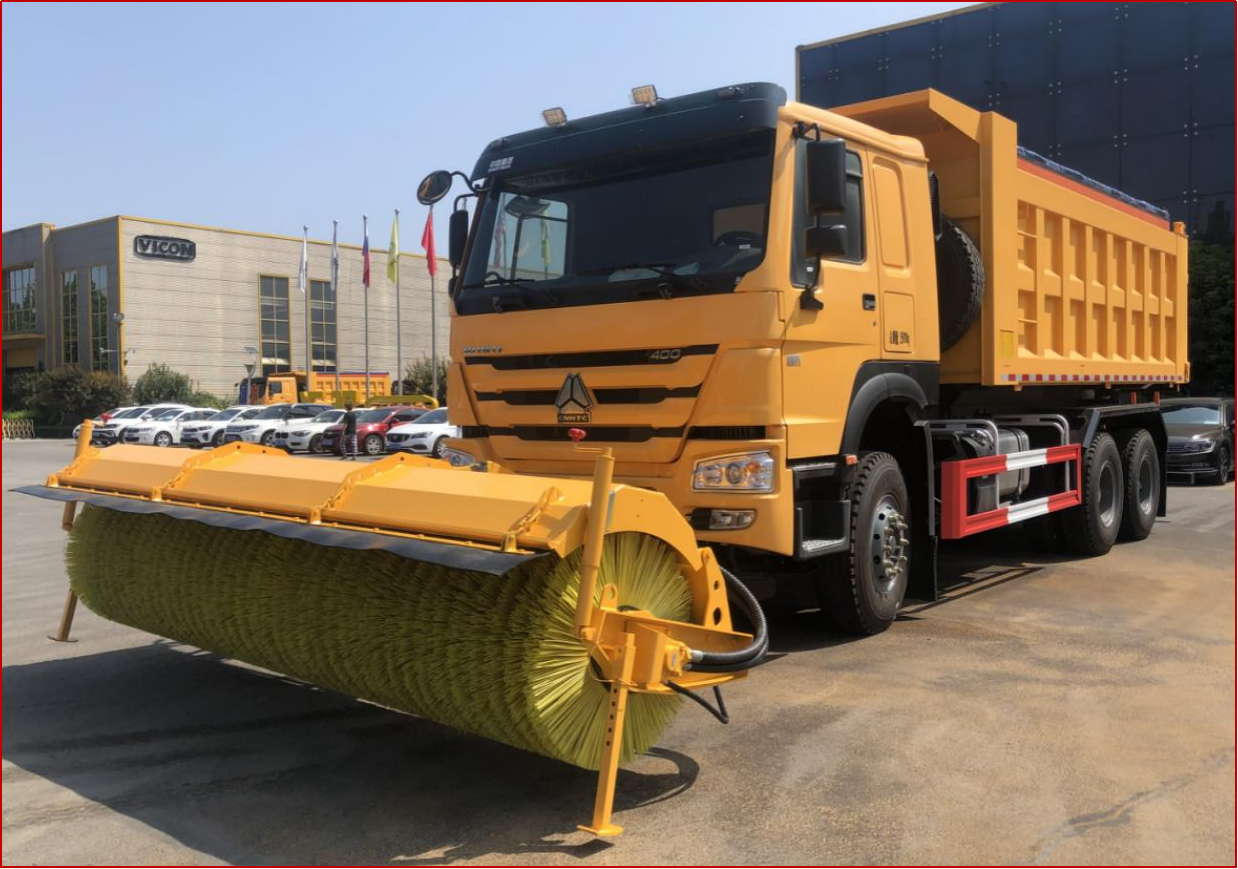

High Speed Snow Plow

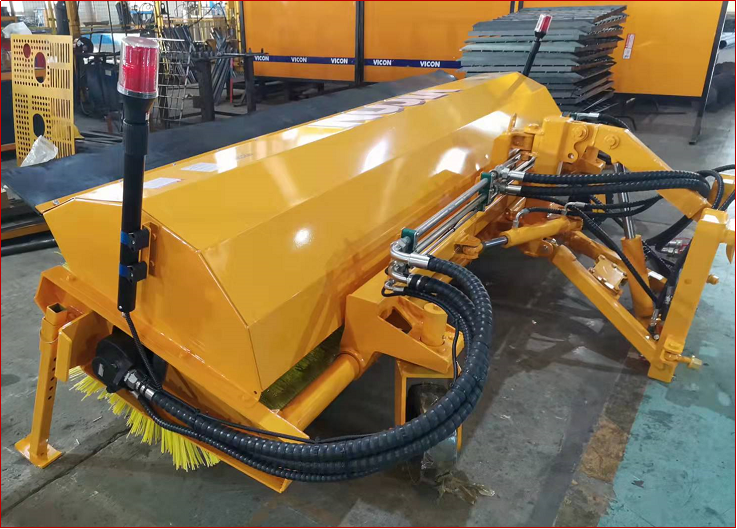

1. Roller brush drive mode: Double-sided hydraulic motors and roller brushes, chain drive is not accepted.
2. The connection between the motor and the brush shaft adopts spline sleeve transmission. The brush shaft head is installed on the inner ring of the bearing, and the outer ring of the bearing is connected to the motor, which can protect the motor shaft and prevent motor damage caused by impact.
3. The maximum rotational speed of the roller brush is ≥400r/min, and the maximum working torque of the roller brush is ≥1900N.m.
4. The maximum linear speed of the roller brush is ≥60km/h;
5. Roller brush structure width :≥4000m;
6. Bristle width of the roller brush :≥3500m;
7. The roller brush is fully hydraulically powered for lifting and lowering, with left and right power deflection. The swinging mode is a four-axis double swing arm type, with a maximum swing Angle of 38° and an effective working width of 2867-3500mm.
8. Brush blade diameter :≥810mm, effective working length of the bristles of the roller brush ≥260mm;
9. Roller brush shaft: The brush shaft adopts an integral shaft design, not a two-section type. The structure of the brush shaft uses a four-corner shaft structure
The structure is stable. During operation, the dynamic balance of the roller brush is better and more stable.
10. The roller brush support wheels adopt two heavy-duty high-speed pneumatic tires:
11. Roller brush cover: The brush cover is made of high-strength steel, in an arc shape, with a smooth surface. The entire outer cover is formed by a single sheet and is not spliced. It has good anti-corrosion performance and is protected by a formed frame on the outside of the brush cover.
12. Roller brush support feet: The support feet and the brush head are designed as an integrated unit and are fixed on both sides of the brush head. When not in operation, simply insert a fixed pin into the connection hole to fix and store the roller brush. When in operation, simply pull out the fixed pin and the support feet can be removed.
13. There are width indication warning devices on both sides of the roller brush, with built-in LED lights. It adopts soft light technology to reduce the driver's eye fatigue.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
Project | Unit | Parameters or configurations | |

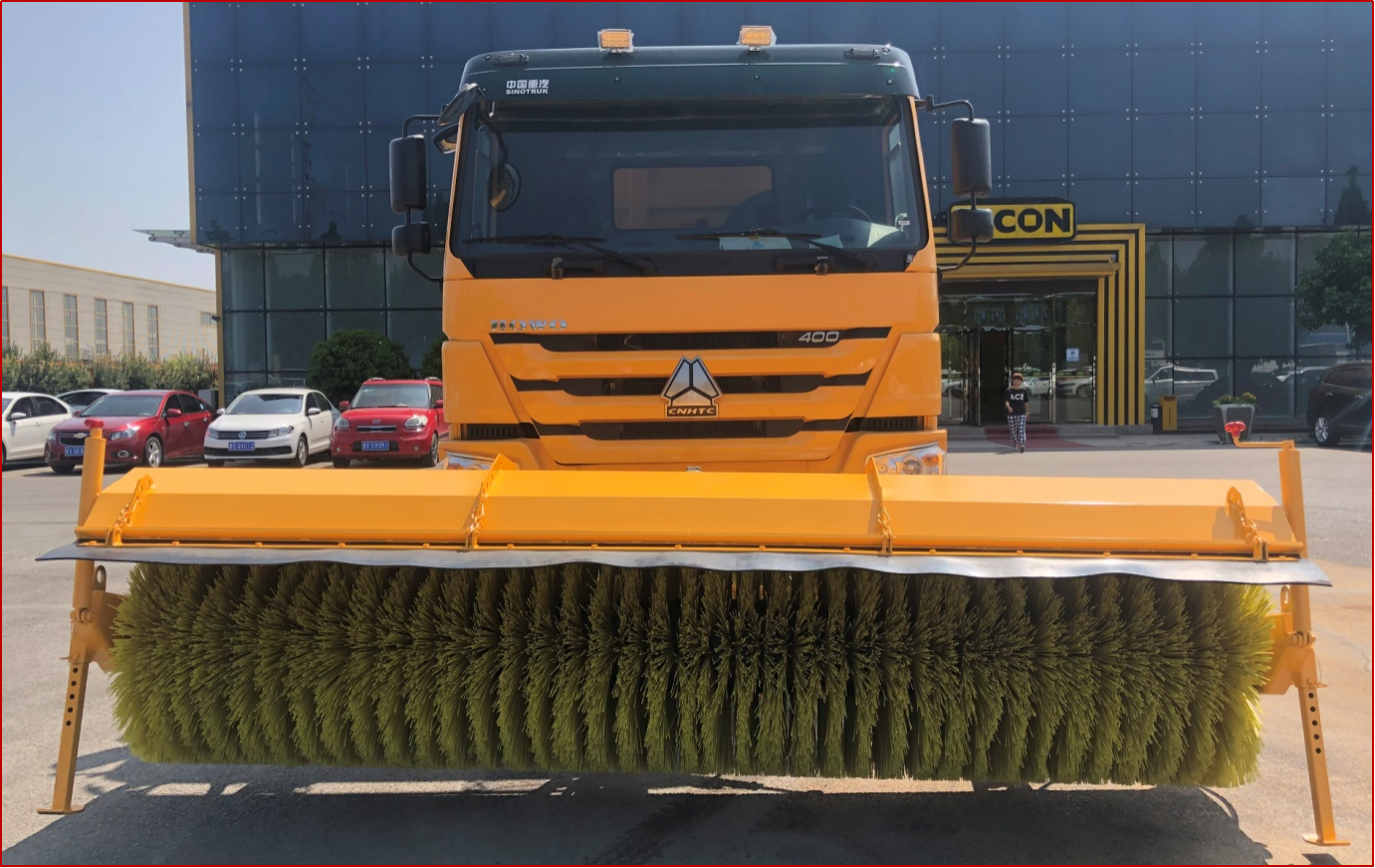

truck hitch snow plow Product Parameter | overall size | mm | 3600✖2290✖1300 |
Brush blade material | / | Pure imported polypropylene or domestic polypropylene mixed with steel wire | |
driving motor | / | Radial plunger motors at both ends | |
Motor displacement | ml/r | 250 | |
Left and right deflection Angle | ° | 38±3 | |
rotate speed | r/min | 0-420 | |
Supporting tire material | / | Inflatable rubber tire | |
The number of support wheels | / | 2 | |
Overall movement mode | / | hydraulic drive | |
work stress | Mpa | 15-20 | |
operating speed | km/h | 40-60 | |
control mode | / | Hydraulic and wired remote control | |
Product Features
Auxiliary Equipment Product Features
(1)Roller brush speed: 400 r/min (infinitely adjustable). Ideal for rapid snow removal on highways to boost working efficiency.
(2)Bristle material: Sheet structure combining polypropylene and elastic steel wire, installed alternately. Effective service life ≥ 200 hours. The bristles feature good wear resistance, high flexibility and bending resistance, cause no damage to road surfaces, and are resistant to low temperature and aging.
(3)All control devices for the roller brush are installed inside the cab. The lifting, swinging, tilting and rotation of the roller brush are all controlled by electro-hydraulic control valves.
(4)The support wheels of the roller brush adopt rubber tires, which rotate synchronously. The contact area with the ground is adjustable. Maximum deflection angle of the roller brush: 35°.
(5)The painted surface of the roller brush features firm and even coating, attractive appearance, as well as excellent corrosion resistance, dust resistance, scratch resistance and moisture resistance.
(6)The roller brush is equipped with road profiling function, which can automatically adapt to uneven road surfaces.
(7)The roller brush is fitted with a manual hydraulic compensation function. The bristle ground clearance is adjustable in multiple stages. It can be operated manually from the cab or automatically via the intelligent system for easy operation.
(8)It is equipped with a linkage control function between roller brush speed and vehicle traveling speed. The roller brush speed increases or decreases correspondingly with the rise and fall of vehicle speed, so as to achieve optimal snow removal effect, reduce bristle wear, extend service life and save energy consumption.
(9)The roller brush shaft adopts an integrated structure, and the roller brush frame is made of high-strength alloy material.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: What is the material of the roller brush bristles?
Answer: Bristle material: Alternately installed sheet-type combination of polypropylene and elastic steel wire. The effective service life is no less than 200 hours. The bristles feature excellent wear resistance, great elasticity and bending resistance. They cause no damage to road surfaces, and perform well against low temperature and aging.
Question:Is the roller brush equipped with night warning devices?
Answer: Yes.Warning marker pole lights are installed on both sides of the roller brush for night operation indication, improving operational safety.
.
Question:What is the maximum deflection angle of the roller brush?
Answer: Maximum deflection angle of roller brush: 35°
