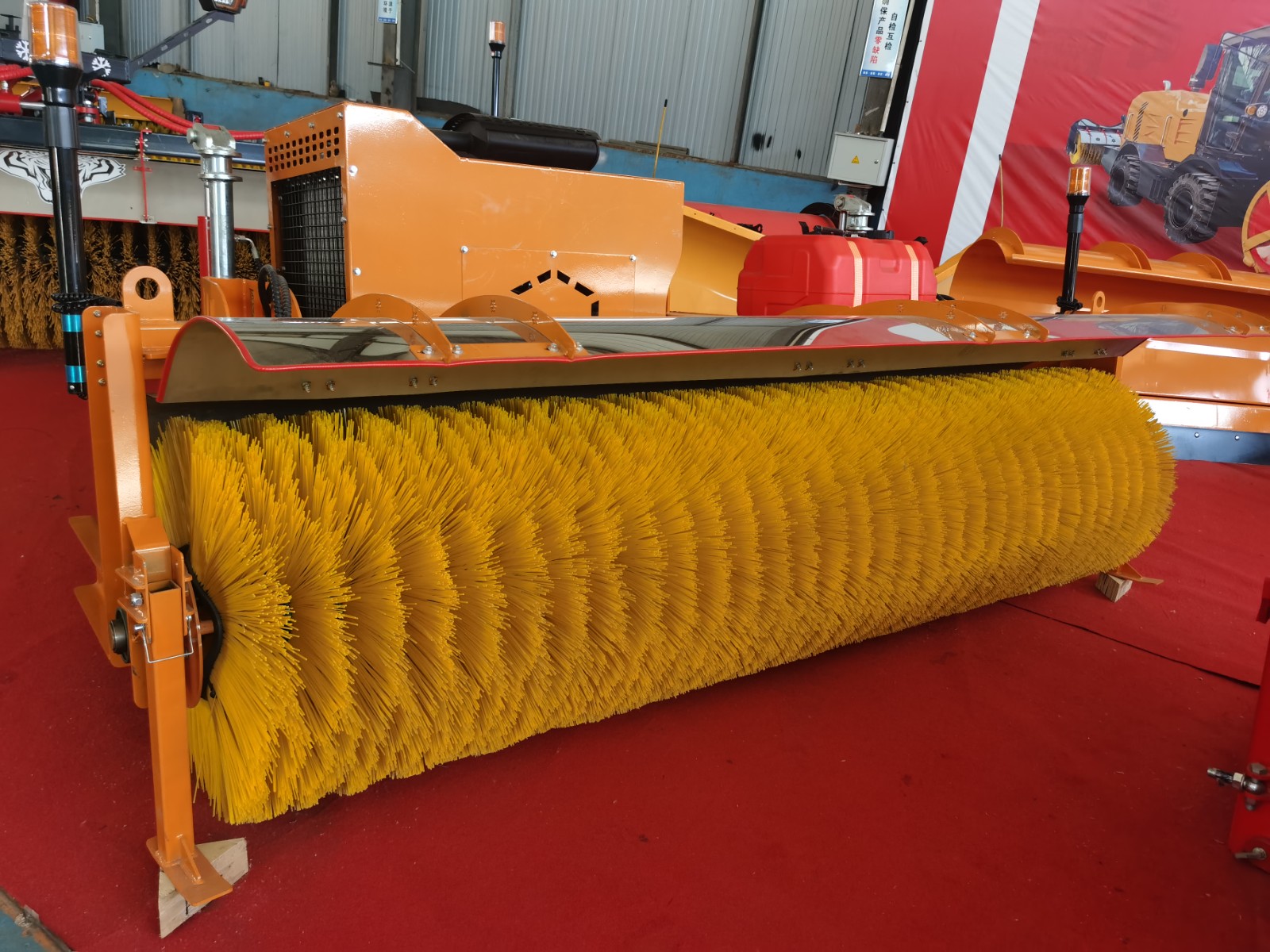

Own Powered Snow Plow
The self-powered snow sweeping roller brush is fully designed to meet the harsh requirements of winter snow removal, with optimized and upgraded structures and details to ensure stable operation of the equipment under complex conditions such as low temperatures and heavy snow cover.
Compared with ordinary self-powered roller brushes available on the market, this product features an innovative appearance, compact structure, high rotational speed, intelligent speed regulation and dual support wheels.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
Project | Unit | Parameters or configurations | |
Product Parameter | boundary dimension | mm | 3550×2204×1686 |
engine power | kw | 36.8-55(frequency conversion) | |
Clutch type of roller brush | / | Speed-sensing clutch | |
Minimum snow removal width | mm | 3200 | |
Diameter of snow removal roller brush | mm | 815 | |
Minimum operating speed | km/h | 40 | |
weight | kg | 1400±50 | |
Adapt to the uneven surface of the road | ° | ±8 | |
engine speed | r/min | 400 | |
angle of deflection | ° | ±30 | |
Product Features
Auxiliary Equipment Product Features
(1)The equipment body is constructed from high-strength steel with integral welding and anti-corrosion treatment. It features light weight and high structural strength, and can effectively prevent material embrittlement under low temperatures down to -60°C.Reinforcement ribs are arranged on the side of the body to withstand impacts between the roller brush and ground protrusions during snow removal, avoiding deformation and damage. In addition, the surface of the machine is coated with low-temperature-resistant anti-rust paint. Even with long-term exposure to snow, ice and deicing agents, it can resist rust efficiently and extend service life.
(2)The remote control operation panel adopts a modular design with concentrated layout of key buttons and instrument panels, delivering simple and intuitive operation.
(3)The core advantage that distinguishes self-powered snow sweeping roller brushes from traditional towed snow removal equipment lies in their built-in independent power system. They do not require traction from external vehicles and can move and operate independently, greatly improving snow-clearing efficiency and flexibility. This roller brush can be matched with dump trucks, loaders and other vehicles.
(4)As the core working component of the equipment, the roller brush features bristles made of highly elastic and wear-resistant plastic with a wire diameter of 3 mm. It can not only sweep heavy snow forcefully but also break thin ice layers effectively.The roller brush has a diameter of 815 mm, with a single cleaning width ranging from 3200 mm to 3752 mm. Its hourly working efficiency reaches 8,000 to 15,000 square meters, equivalent to the cleaning output of 20 workers.In addition, the angle of the roller brush can be adjusted from 0° to 30° via the hydraulic system, which pushes snow to one side directionally for subsequent centralized disposal and prevents secondary snow accumulation.
(5)The bottom of the roller brush adopts an inflatable tire support design, which is suitable for hardened pavements with fast traveling speed and flexible steering. Four inflatable support wheels are equipped, and each support wheel can rotate 360 degrees.
(6)The snow shield of the roller brush is made of stainless steel, featuring light weight, elegant appearance and excellent corrosion resistance. The angle of the snow shield is adjustable to throw snow out more efficiently.
(7)The clutch is an automatic speed-sensing clutch, not a mechanical friction plate type nor gearbox type.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: What are the differences between self-powered snow sweeping roller brushes and traditional towed roller brushes?
Answer: The core advantage that differentiates self-powered snow sweeping roller brushes from traditional towed snow removal equipment lies in their independent power system. They do not require traction from external vehicles and can move and operate independently, greatly boosting snow-clearing efficiency and maneuverability. This unit can be fitted to dump trucks, loaders and other vehicles.
Question:Is the self-powered roller brush equipped with support wheels?
Answer: Yes.The bottom of the self-powered roller brush adopts inflatable tire support structure. It adapts to hardened road surfaces with fast traveling speed and flexible steering. Four inflatable support wheels are installed, each capable of 360-degree rotation.
Question:What is the rotational speed of the self-powered roller brush?
Answer: The rotational speed of the self-powered roller brush can reach 400 r/min.
