Four Wheeler Snow Blower
The multi-functional snow blower is equipped with a Dongfeng Tianjin chassis and a snow sweeping roller brush at the front end. The snow-blowing device is installed in the middle, and the auxiliary chassis and power station are installed at the rear end. The front of the vehicle is equipped with a quick hydraulic interface, which enables the front snow sweeping roller brush (3500mm), front snow thrower (2800mm), front tipping snow shovel (4000mm), and medium snow blowing operations.
This vehicle can be used for snow removal, ice removal, snow blowing and other operations in winter. It is a necessary snow removal equipment for modern expressways, urban sanitation, airports and other places.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Total mass | kg | 18000 | |
| Maximum speed | km/h | 80 | ||
| Drive type | / | 4✖4 | ||
| engine power | kw | 169 | ||
| power takeoff | / | Full power take-off and side take-off | ||
| starter | / | Low-temperature cold start device | ||
| Fan rotational speed | r/min | 0-4200（adjustable） | ||
| fan delivery | m³/h | 0-28500（adjustable） | ||
| Auxiliary engine power | kw | 300 | ||
new snowblower
new snowblower
Powerful snowblower
Front tipping snow shovel (4000mm)
Product Features
Vehicle Product Features
This snow removal truck adopts a Dongfeng Kinland chassis. A snow sweeping roller brush is installed at the front, a snow blower unit is fitted in the middle, and an auxiliary chassis together with a power station are mounted at the rear. Quick hydraulic connectors are equipped on the front of the vehicle to enable operation of the front snow sweeping roller brush and the middle snow blower.
This vehicle can perform snow sweeping, ice breaking, snow blowing and other tasks in winter. It is essential snow removal equipment for modern expressways, urban sanitation, airports and other sites.
Introduction to De-icing Fluid Spreading System
1.new snowblower
The roller brush features forced pressing and automatic ground pressure adjustment. Its contact height with the ground can be adjusted as required.It automatically adapts to road cross slopes, maintains full ground contact and optimal snow cleaning angle, fits uneven road surfaces and dodges obstacles autonomously.It automatically adapts to road cross slopes, maintains full ground contact and optimal snow cleaning angle, fits uneven road surfaces and dodges obstacles autonomously.Adopting lightweight design with no supporting casters, it reduces overall weight, failure rate and boosts snow removal efficiency.The roller brush bracket adopts a parallel four-bar linkage mechanism, keeping the brush parallel to the ground at all positions.
2.new snowblower
Model XK90PXJ snow blower is a medium-sized snow removal equipment developed by Weifang Xiangkai Machinery Manufacturing Co., Ltd. It is mounted on 18-ton and 25-ton heavy truck chassis for winter snow clearing. It can realize long-distance snow conveying and vehicle snow loading.Powered by the truck chassis without an independent engine, it is interchangeable with existing snow removal vehicles. It features easy installation and expands the working functions of snow vehicles
3.Powerful snowblower

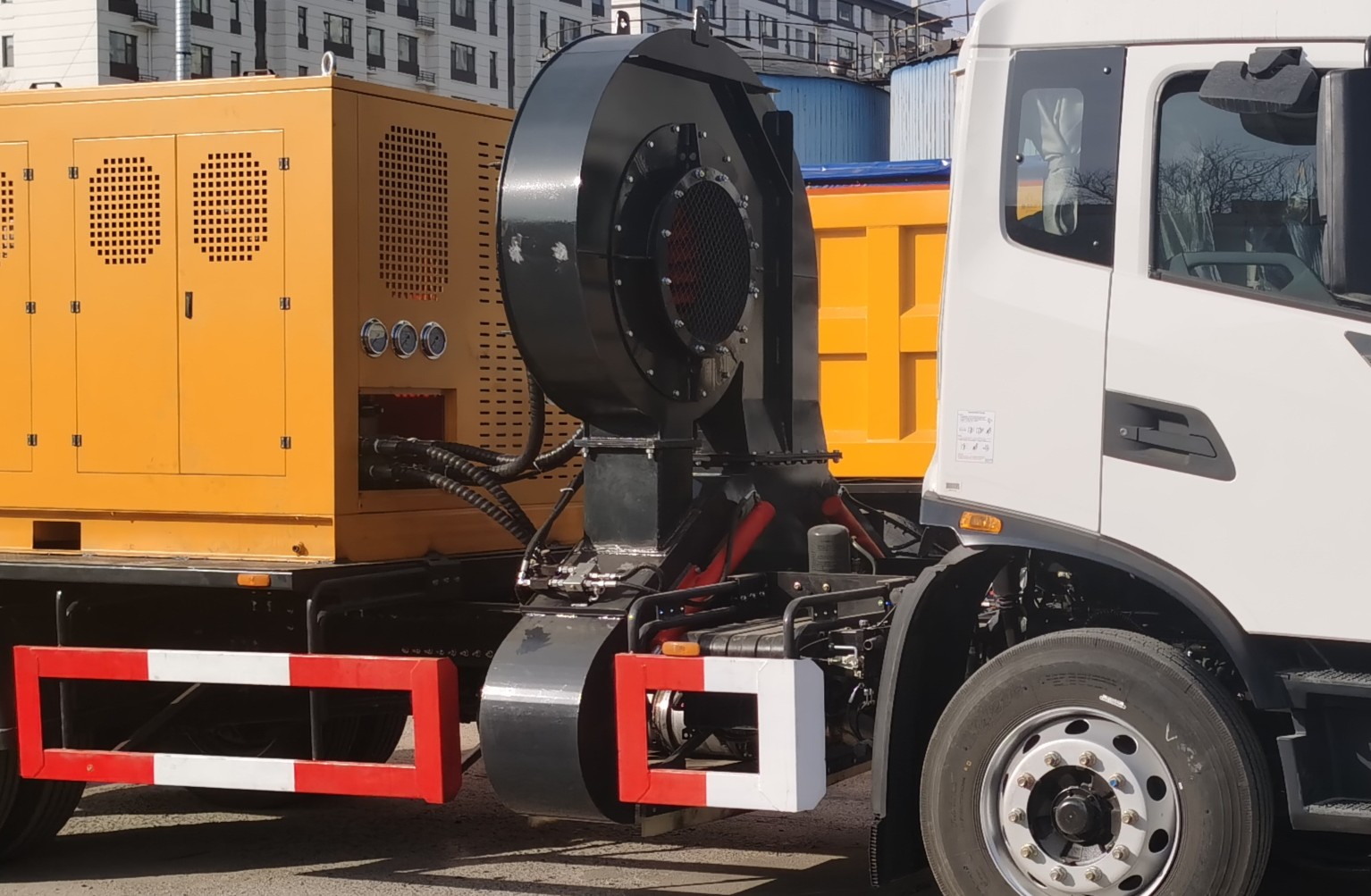

The mid-mounted snow blower unit adopts a new structural design and is installed between the front and rear axles of the chassis. It consists of a fan assembly, middle air duct assembly, left and right side air ducts, flow guide duct assembly, flow guide duct lifting mechanism assembly, and driving oil cylinders.
The fan is driven by a hydraulic motor. The middle air duct assembly is connected underneath the fan and equipped with hydraulically actuated air dampers to switch the blowing direction of snow-blowing airflow. The left and right side air ducts telescope from the left and right outlets of the middle air duct, which are inclined downward. The telescoping movement of the side air ducts simultaneously serves as vertical lifting. When both side air ducts are fully retracted, the vehicle enters the transit state.
A flow guide duct assembly is mounted below the middle air duct assembly, aligned with the nozzles of the left and right side air ducts. It restricts the direction of high-velocity airflow and keeps wind close to the ground for snow removal, greatly improving snow blowing performance.
During operation, only one side air duct extends and lowers at a time, so the flow guide duct slides left or right to match left-side or right-side snow blowing operations. For transit and road transport to comply with vehicle official filing standards, the flow guide duct can be lifted and centered on the vehicle body.
Since the flow guide duct operates at a low height close to the ground, an obstacle avoidance function is integrated to handle road obstructions. The obstacle avoidance mechanism of the flow guide duct adopts a hydraulic cylinder-driven suspension cable structure.
4.Front tipping snow shovel (4000mm)
Feeding mode of spreader: Adopts scraper chain treated with Dacromet technology, anti-slip and stable in conveying capacity.Spinner disc material: Stainless steel.Main body material: 4mm thick carbon steel. Parts contacting deicing agent feature high anti-corrosion performance.Spreading volume is adjustable in real time. Spreading density, width and direction can be set and adjusted inside the cab according to road conditions. The control panel displays and records operating parameters to meet actual working demands.Control system: Wired remote controller ensures convenient and reliable operation. A central console in the cab realizes integrated control of spreading and snow removal, with all operations finished inside the vehicle.An inverted V-shaped structure inside the hopper avoids direct pressure on the scraper chain and reduces system load.A mechanical crushing device at the discharge end breaks caked deicing agent to prevent blockage and ensure smooth feeding.Discharge opening size is electrically adjustable to match different snow accumulation levels.Equipped with low material level alarm to remind operators when materials run out.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question:What is the rotational speed of the snow broom?
Answer: Rotational speed of snow broom: 300 rpm.
Question:What is the working principle of the snow thrower?
Answer:Working Principle of the Snow Thrower:After being cut by the spiral snow-collecting auger, snow is conveyed into the central throwing chamber of the snow thrower. Centrifugal air exhaust generated by the throwing rotor creates a large pressure difference between the snow intake and discharge outlets, drawing snow into the unit. The high-speed rotating fan impeller accelerates the snow to form a high-speed mixed airflow of snow and air, ejecting the snow over a long distance.
.
Question:What are the fan speed and air volume of the mid-mounted snow blower unit?
Answer: The fan speed of the mid-mounted snow blower unit is 0~4200 r/min (adjustable), and the air volume ranges from 0 to 28500 m³/h (adjustable).
Question:Does the snow shovel adopt ground profiling and automatic balance structure?
Answer:The snow thrower adopts full-hydraulic drive. Hydraulic cylinders control the adjustment of the snow deflector and the lifting/lowering of the unit, while a single hydraulic motor drives both the throwing impeller and snow auger.
