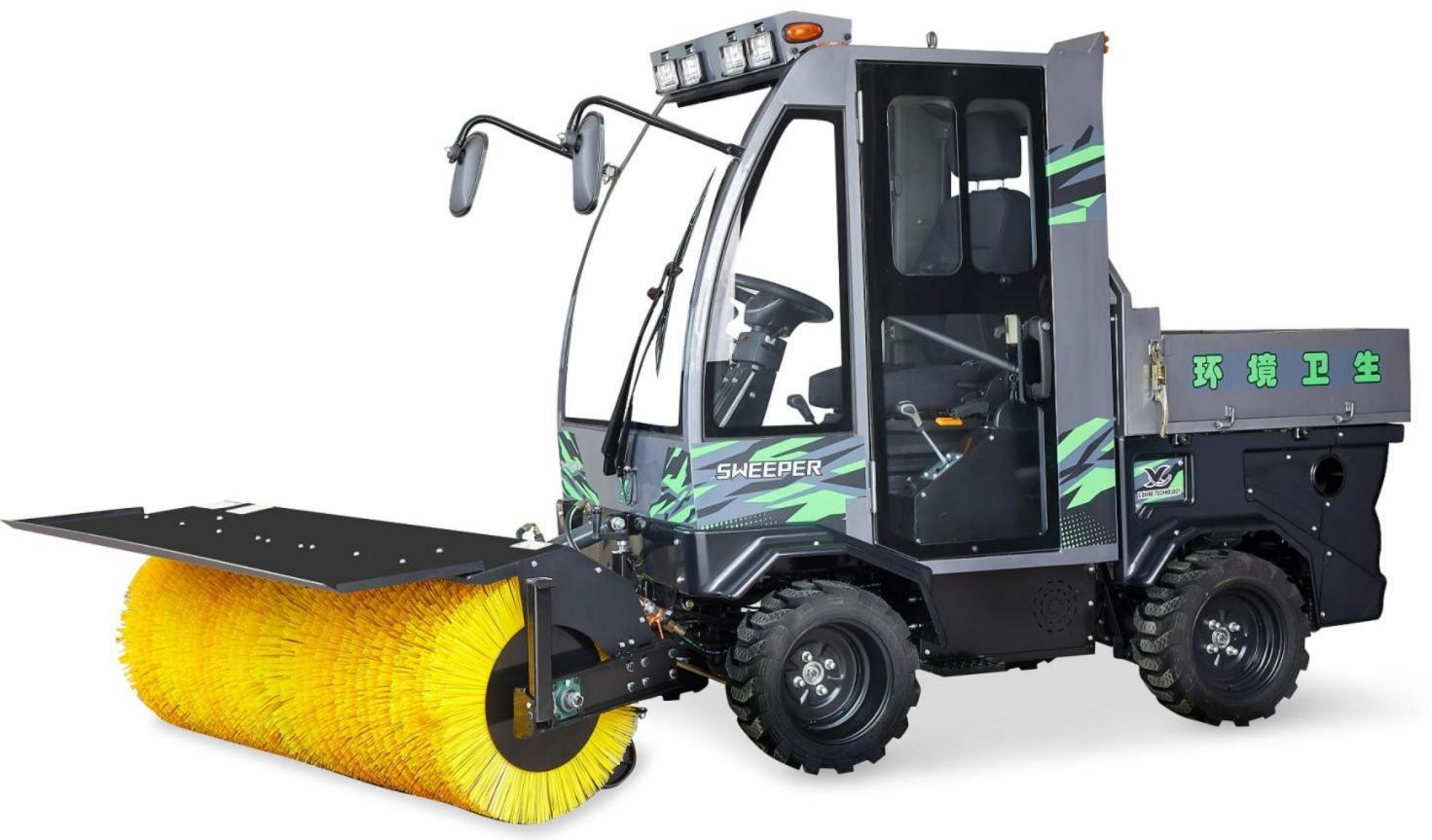

Small Multi-purpose Snow Plower
Small multi-purpose snow plower, A multi-purpose snow plough, gas powered sweeper for snow, Multi-purpose snow removal vehicle, Compact multi-function snow power
Small multi-purpose snow plower, A multi-purpose snow plough, gas powered sweeper for snow, Multi-purpose snow removal vehicle, Compact multi-function snow power
1.All-gear transmission: It adopts an all-gear structure. The snow-sweeping and snow-throwing terminals are directly connected to the gearbox through an output shaft.
2.Full-time four-wheel drive transmission system: It adopts a full-time four-wheel drive structure and is an essential choice for the actual working conditions of slippery roads in snowy weather.
3. Diversified power source selection: Both diesel and gasoline engines can be chosen freely, and single-cylinder and dual-cylinder gasoline engines can also be selected by customers, providing customers with a greater range of choices.
4. Customized anti-slip tires: In response to the practical needs of further enhancing work efficiency while ensuring flexible handling, and based on years of practical usage experience, we have independently developed snow tires with better anti-slip performance.
5.The equipped diesel auxiliary heating system: It is an even more considerate care, providing outdoor workers in the icy and snowy weather with the warmth and comfort they deserve.
6. Electric power steering system: Makes handling more worry-free and turning more effortless.
7.The fully hydraulic working terminal control system: The lifting and turning of the functional end are controlled by hydraulic means.
8. Equipped with a hydraulic lifting self-unloading trailer bucket: It can easily lift a tow bucket fully loaded with 400 kilograms. Its powerful performance greatly improves the efficiency of transporting bulk snow anti-slip sand in emergency situations.
9.Optional rear-mounted high-pressure cleaner: To make the best use of the equipment and ensure it can be used in other seasons, thereby enhancing the cost-effectiveness of the machine itself, we have designed a self-priming high-pressure cleaner and a large-capacity water tank for it. The water tank has a capacity of 300 liters, the maximum pressure of the cleaning machine is 200 kilograms, and the flow rate is 15 liters per minute. It fully meets the needs of common cleaning operations.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Vehicle body size | mm | 2850 * 1350 * 2100 | |
| engine power | k'w | 10 | ||
| wheel base | mm | 1300 | ||
| Gear speed（1/2/3/4/reverse gear） | km/h | 1.96/3.47/6.67/14.72/2.37 | ||
| Vehicle weight | kg | 860（underpan）＋140（Sweeping brush head） | ||
| Fuel tank capacity | L | 20 | ||
| Parameters of the upper equipmen | Roller brush cleaning width | mm | 1500 | |
| Roller brush diameter | mm | 600 | ||
| The rotational speed of the snow brush | rpm | 360 | ||
| The deflection Angle of the snow brush | ° | ±30 | ||
| Snow throwing width | mm | 1200 | ||
| Snow removal thickness(Height of the snow hopper) | mm | ≥600 | ||
| The width of the snow pusher | mm | 1500 | ||
| The height of the snow pusher | mm | 400 | ||
| Sweeping brush material | / | Brand new wear-resistant polypropylene | ||
| Volume of deicing agent spreader | L | 300 | ||
| Dimensions of the de-icing agent spreader | mm | 1085x595x1212 | ||
| Spreading width | m | 3-8 | ||
| water tank capacity | L | 300 | ||
configuration | / | pressure washer gun、Seven-hole sprinkler head、Side high-pressure nozzle | ||
Small Multi-purpose Snow Remover
Compact multi-function snow plower
Rear high-pressure cleaner
Snow removal, throw your head away
Product Features
Vehicle Product Features
(1)Frame: It features exceptional structural strength, capable of withstanding impacts from heavy-duty snow removal operations and remaining free from deformation under sustained stress. Its substantial weight and high ground clearance fully meet the requirements for special operations.
(2) Suspension: The front suspension adopts a solid axle non-independent suspension. This structure features high strength and excellent adaptability to harsh working conditions, fully coping with the heavy impact on the front axle caused by the front-mounted working unit of the snow remover. The rear suspension is an independent suspension for better handling and riding comfort.The tires are designed with a maximized contact area to enhance grip, delivering outstanding anti-slip performance and climbing capability.
(3)Full Gear Drive：The unit adopts an all-gear structure. The snow sweeping and throwing assembly is directly connected to the gearbox via output shafts. Gear transmission delivers no power loss and strong power output, enabling low-horsepower engines to drive both travel and working systems for better energy efficiency and environmental performance.Unlike hydraulic snow vehicles on the market, which tend to overheat and slow down after long hours of operation, Model 880 boasts superior stability and durability.
(4)Full-time Four-wheel Drive System：Equipped with a full-time four-wheel drive structure, it is an ideal choice for slippery road conditions in snowy weather. The vehicle runs steadily even on icy slopes.electric Power Steering SystemIt makes operation easier and requires less effort when turning.
(5) Diversified power options: Customers can choose either diesel engines or gasoline engines. Single-cylinder and twin-cylinder gasoline engines are also available as optional configurations, offering greater flexibility.
(6) This multi-functional snow remover is fitted with custom anti-slip tires, anti-fog tempered glass and an auxiliary diesel heating system.
(7)Full-hydraulic Working Terminal Control System：The lifting and steering of the working unit are hydraulically controlled. Compared with snow sweepers on the market that use steel cable traction for lifting — which suffer from unsmooth movement, excessive shaking, intermittent stalling, rapid wear and high failure rates — Model 880 Snow Cleaner features more precise control of the snow removal terminal and more reliable mechanical performance.
(8)Equipped with a hydraulically-lifted self-dumping trailer bucket. It can easily lift a fully loaded bucket of up to 400 kilograms. Its powerful performance greatly improves the efficiency of transporting bulk anti-slip sand for snow-covered roads in emergency situations.
(9)Optional rear-mounted small spreader: To meet the requirements of various working conditions, this vehicle can be fitted with a small spreader as an option. The hopper capacity is 300 liters, and the spreading width ranges from 3 to 8 meters, which can be adjusted via the electric control system according to the operation site. It provides more solutions for users and facilitates diversified snow removal operations.
(10)Optional rear-mounted high-pressure cleaner: To maximize equipment utilization and enable its use in off-seasons for higher cost performance, we equip it with a self-priming high-pressure cleaner and a large-capacity water tank. The water tank has a capacity of 300 liters. The cleaner delivers a maximum working pressure of 200 kg and a flow rate of 15 liters per minute, fully meeting the demands of routine cleaning work.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: What is the transmission mode of the multi-functional snow remover?
Answer: Full Gear Transmission：Adopting an all-gear structure, the snow sweeping and throwing units are directly connected to the gearbox via output shafts. This gear transmission features zero power loss and strong power output, allowing low-horsepower engines to drive both the vehicle's travel and working systems, delivering better energy conservation and environmental performance.
Question:Is the multi-functional snow remover four-wheel drive?
Answer: This multi-functional snow remover is equipped with a full-time four-wheel drive system, an ideal configuration for slippery snowy road conditions. It runs extremely steadily even on icy slopes.
Question:What are the hopper capacity and spreading width of the rear-mounted small spreader on the multi-functional snow remover?
Answer: The hopper capacity of the rear-mounted small spreader for the multi-functional snow remover is 300 liters, with a spreading width ranging from 3 to 8 meters, which can be adjusted via the electric control system according to the working site conditions.
Question:What is the snow sweeping width of the front roller brush on the multi-functional snow remover?
Answer:1500mm
