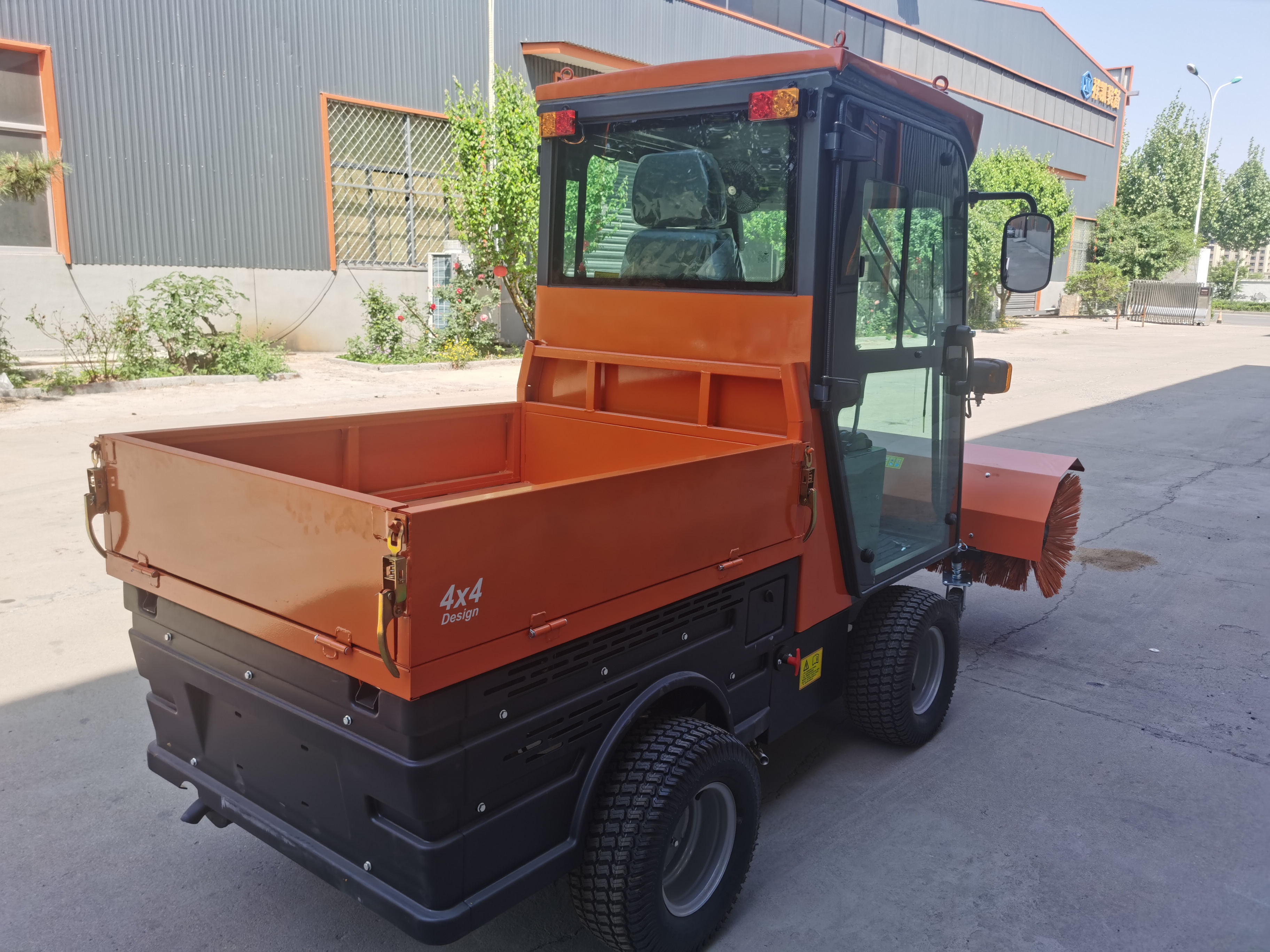

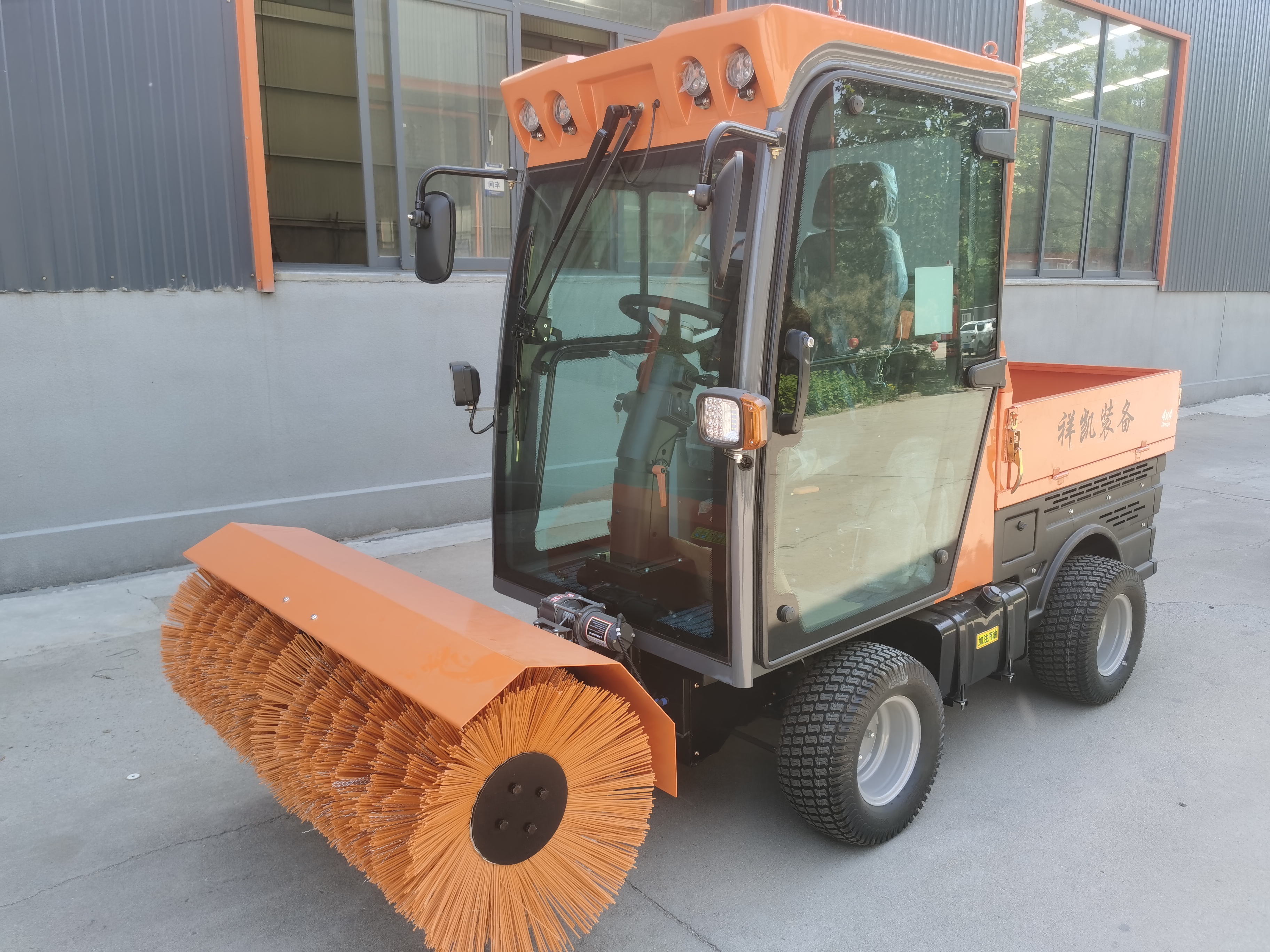

Small Gasoline Snow Plows
Small gasoline snow plows, Small gasoline snowplow, Small gasoline snow remover, Compact snow removal truck, snow plowing vehicles
1. A two-cylinder low-temperature easy-to-start engine with a displacement of 739cc and a peak power of 25 horsepower.
2. Four-wheel drive, full-time four-wheel drive. The tires are 20*8-10 deep-grain vacuum snow tires with a width greater than 200mm, providing strong grip.
3. It features stepless speed change and cruise control. It adopts an original imported transmission from the United States, which is of stable quality. There is no need for a clutch or brake. Just operate one handle to achieve forward movement, acceleration, deceleration, reverse movement, parking and other operations.
4. Three modes can be switched: low-speed working mode, speed: 0-6 km /h; high-speed transfer mode, speed: 0-12 km /h.
5. Equipped with an output protection device, the working heads such as the roller brush cannot operate in high-speed transfer mode and non-powered mode.
6. Equipped with electronic power steering, it enables easy control of turns.
7. Equipped with a digital-controlled warm air blower, the enclosed cab maintains a constant temperature.
8. It is equipped with a 15-liter large fuel tank, a fuel tank lock, and a fuel level display inside the vehicle.
9. It is equipped with an emergency stop button. In case of an emergency, it can be stopped with just one click.
11. It is equipped with a 2,500-pound electric winch, which can lift the working heads such as roller brushes and is also used for vehicle escape.
10. It is equipped with water spray wipers, turn signals, 6 headlights, shock-absorbing seats, dual-speaker music players, fans and other comfortable features.
12. Equipped with a 12V100Ah (800CCA, 20hr) car battery
13. Body dimensions: 2500*1300*1980, can enter underground garages, wheelbase 1300, small turning radius. Equipped with an ultra-long cargo hopper of 1*1.3 meters, it can carry materials and tools.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
| Project | Unit | Parameters or configurations | ||
| Vehicle parameters | Vehicle body size | mm | 2500 * 1300 * 1980 | |
| type of drive | / | full-time 4WD | ||
| wheel base | mm | 1300 | ||
| operating mode | km/h | Low-speed mode 0-6/high-speed mode 0-12 | ||
| Car battery | V/Ah | 12/100 | ||
| Fuel tank capacity | L | 15 | ||
| Parameters of the upper equipmen | Roller brush cleaning width | mm | 1400 | |
| The rotational speed of the snow brush | rpm | 360 | ||
| The deflection Angle of the snow brush | ° | ±30 | ||
| Snow throwing width | mm | 1200 | ||
| Snow removal thickness(Height of the snow hopper) | mm | ≥600 | ||
| The width of the snow pusher | mm | 1500 | ||
The height of the snow pusher | mm | 400 | ||
Product Features
Vehicle Product Features
(1)Enclosed cab, warm and comfortable
Fitted with a digitally controlled heater, the enclosed cab maintains a constant temperature, enabling operators to work continuously for long hours without shifts. It is also equipped with water spray wipers, turn signals, six headlamps, shock-absorbing seats, dual horns, a music player, fans and other comfort features.
(2) Powerful Power, Efficient Snow Removal
Equipped with a twin-cylinder engine that starts easily at low temperatures, it has a displacement of 739cc and a peak power of 25 horsepower, delivering robust performance. It features continuously variable transmission and cruise control. With a large 15-liter fuel tank and a 150cm snow clearing width, it ensures high working efficiency and supports prolonged operation.
(3)Intelligent control, easy and convenient operation
Equipped with an integrated multi-function control panel and original imported transmission. It supports one-touch start, automatic adjustment of snow removal angle and roller brush lifting/lowering. The vehicle is fitted with an electric power steering system. You can freely switch among low-speed working mode, high-speed transit mode and neutral mode. The exclusively patented output protection device prevents operation under high-speed transit mode, effectively minimizing failure rates.
(4)Multifunctional design, one machine for multiple uses
Optional attachments including snow sweeping, snow throwing and snow shoveling are available to meet diverse operational needs. It is fitted with an extra-long 1m×1.3m cargo bucket for transporting materials and tools, and can also be equipped with a spreader.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question:Can the front snow removal attachments of the multi-functional snow remover be interchangeable?
Answer: Yes.The front roller brush, snow shovel and snow blower of the multi-functional snow remover can be quickly interchanged, realizing multi-purpose application of one machine.
Question: What is the snow clearing width of the front roller brush of the multi-functional snow remover?
Answer:The snow clearing width of the front roller brush on the multi-functional snow remover is 1200 mm.
Question:What is the driving mode of the multi-functional snow remover?
Answer: The multi-functional snow remover adopts full-time four-wheel drive.
