Small Diesel Snow Plows
small snow removal vehicles、sidewalk plow、small 4 wheeler with snow plow、small snow plow tractor、small snow plow machine Product Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. independently researches, develops and manufactures small multi-functional snow removal vehicles. The chassis is made of diesel. The upper equipment includes a 1.85-meter snow brush, a 2.3-meter snow shovel, a small vehicle-mounted ice breaker and a snow thrower. The rear is equipped with a 2-cubic-meter spender and a 0.3-cubic-meter rear-mounted spender. Moreover, all these upper equipment can be interchanged. It is mainly applicable to back streets and alleys such as property management in residential areas, squares, parks, schools, hospitals, and non-motorized lanes. The operation is simple and flexible.
- Xiangkai brand
- Weifang, Shandong Province, China
- 1,000 units
- Information
Technical Parameters
Project | Unit | Parameters or configurations | ||
sidewalk plow Vehicle parameters | engine type | / | Changchai 490 | |
engine type | kw | 36.7 | ||
Fuel type | / | diesel | ||
Snow removal width | mm | 1800-2200 | ||
| Snow removal speed | km/h | 3-10 | ||
| radius of turning circle | m | ≤4 | ||
| boundary dimension | mm | 3000×1800×2200 | ||
| total weight | kg | 1800 | ||
| Snow removal speed | km/h | 3-10 | ||
Parameters of special equipment | The width of the bristles of the thick brush | mm | 1850 | |
The overall length of the thick brush | mm | 2100 | ||
Bristle diameter | mm | 630 | ||
Roller brush rotational speed | pm | 244 | ||
Swing the Angle left and right | ° | ±30 | ||
Width of snow shovel | mm | 2300 | ||
bucket capacity | m³ | 0.3 | ||
weight | kg | 68 | ||
overall size | mm | 1212x1085x595 | ||
Motor voltage | V | 12 | ||
Diameter of the sowing tray | mm | 300 | ||
Spreading width | mm | 3-8 | ||
Product Features
(1)Powerful Performance & Efficient Snow Removal: Equipped with Changchai 490 National IV diesel engine, it delivers strong power and ample torque. The machine handles various snow conditions effortlessly to ensure high-efficiency snow removal.
(2)Articulated design for flexible steering: Featuring an articulated frame, it has a small turning radius and excellent mobility. It steers easily in narrow spaces and adapts to complex road conditions.

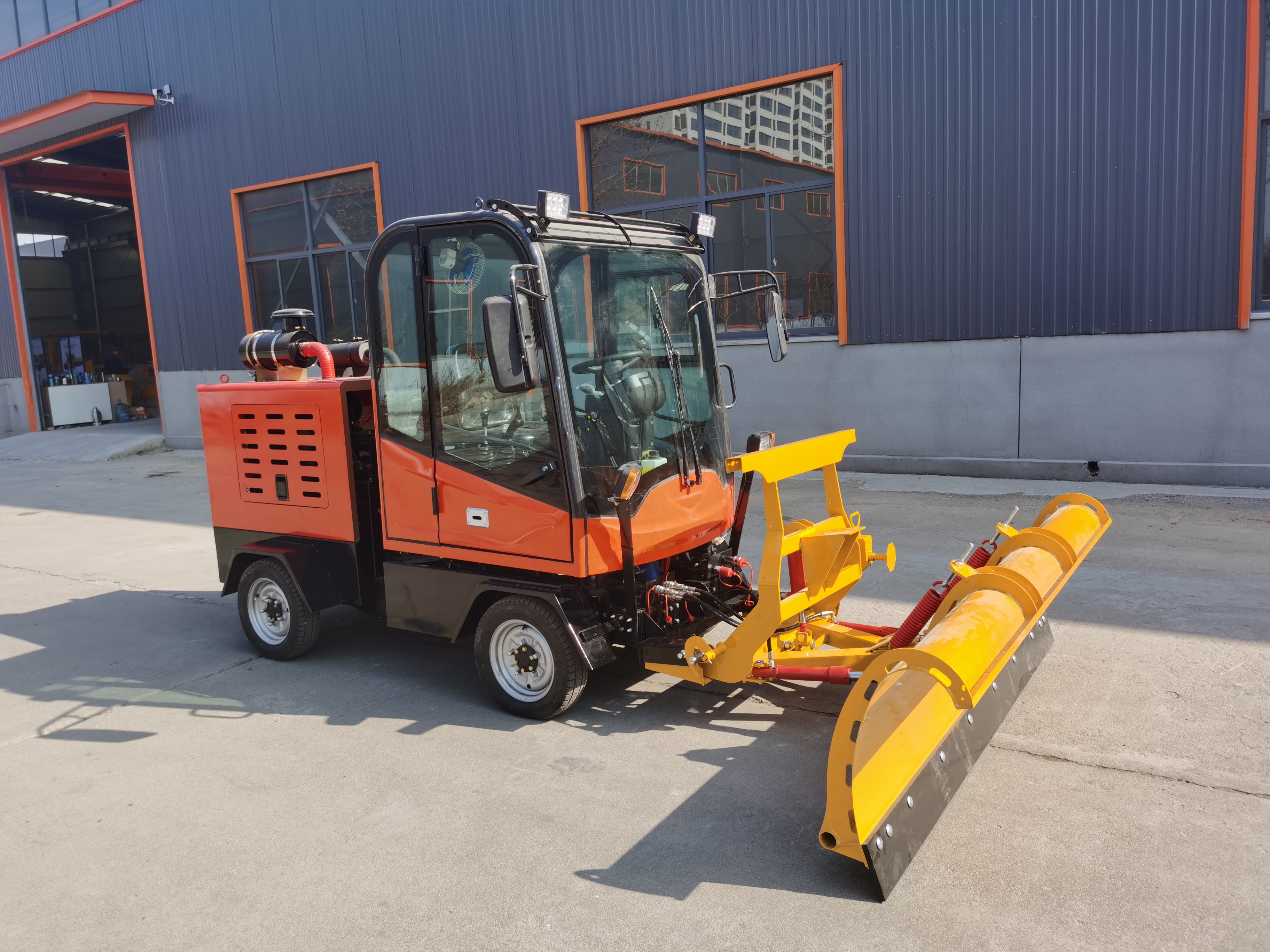

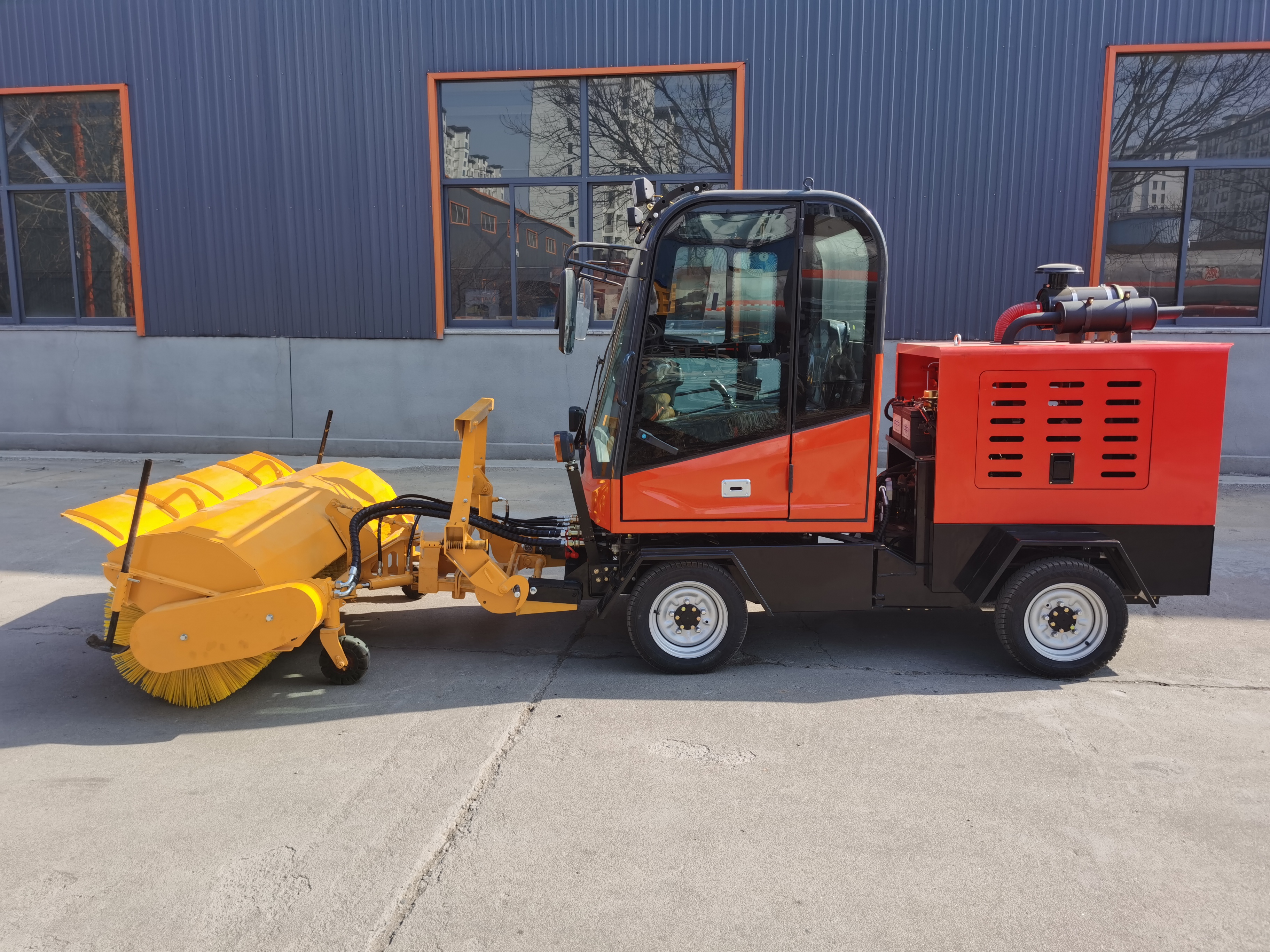

(3)Multifunctional Snow Removal Device, Multi-purpose Machine:Fitted with various snow removal attachments including front snow pusher and roller brush. These can be replaced as needed to realize multiple functions such as snow pushing and snow sweeping.
(4)User-friendly design and easy operation: The cab is spacious and comfortable with reasonably arranged control handles and a clear instrument panel, helping reduce fatigue even during long-hour operations.
(5)Eco-friendly and energy-saving, compliant with National IV emission standards. Adopting advanced electronic fuel injection technology and exhaust aftertreatment system, it effectively reduces fuel consumption and emissions, fully meeting China's Stage IV emission requirements.
Company Introduction
Company Introduction
Weifang Xiangkai Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales of snow removal equipment, highway maintenance machinery, road sanitation facilities, garbage compression and transfer equipment, snow clearing machinery for airports and ports, special traffic vehicles and emergency rescue devices.
1. Development History：
Founded in September 2023, the company has increased its registered capital from 2 million yuan to 10 million yuan. The number of technical staff has grown to 15, front-line production workers to 47, and the production site expanded from 1,000 square meters to 20,000 square meters.After capital expansion, the company accelerated production line optimization and equipment introduction, improving production efficiency and product precision of construction and special machinery. Meanwhile, it continuously expanded business scope and developed supporting services including mechanical parts processing, machinery leasing and agricultural machinery leasing, forming an integrated business model of manufacturing, sales and after-sales service.
Establishment Date: September 2023.
With 25 years of in-depth experience in the snow removal industry.
2. Factory Scale & Production Capacity :
The factory covers an area of 30 mu, with an annual output of over 5,000 sets of equipment.
Factory Area: 20,000 square meters
Production Lines: 2 welding production lines, 7 automatic welding robots, 1 painting assembly line, 1 pickling and phosphating line, 1 powder spraying line and 7 blanking & forming equipment. It owns one 3,000-square-meter assembly workshop.
Monthly Capacity: 500 complete vehicle sets per month
3. R&D & Technical Strength:
R&D Team: 10 senior R&D engineers
Customization Service: Customized solutions are available based on application scenarios, snow coverage area and user habits. The sample development cycle is 10 to 35 days.
Quality Inspection Procedure: Strict quality control is implemented throughout the whole production process from raw material incoming inspection, blanking, forming, welding, spraying to assembly. On-site patrol inspection, working procedure inspection, finished product inspection and random sampling are adopted to guarantee product qualification rate.
4. Market Coverage & Cooperation:
Export Countries: Products are sold far to Russia, Azerbaijan, Kazakhstan and other countries and regions.
Major Partners: Sinotruk Jinan Special Vehicle Co., Ltd., Shaanxi Automobile Holding Group Co., Ltd.
Our Certificates
Product TitleProduct Titlero
FAQ
Question: What is the emission standard of the snow removal vehicle? What is its engine power?
Answer: This snow removal vehicle is equipped with a Changchai 490 diesel engine complying with China Stage IV emission standards. It features powerful output and ample torque, with an engine power of 36.7 kW.
Question:As a small snow removal vehicle can it steer flexibly in narrow spaces?
Answer: This snow removal vehicle adopts an articulated frame. It features a small turning radius and high flexibility, enabling easy steering in narrow spaces and adaptability to complex road conditions.
.
Question:Can different snow removal attachments of the snow vehicle be interchanged?
Answer: This snow removal vehicle is multi-functional. It is equipped with multiple snow removal attachments such as front snow pusher and roller brush, which can be interchanged according to different needs to perform snow pushing, snow sweeping and other operations.
